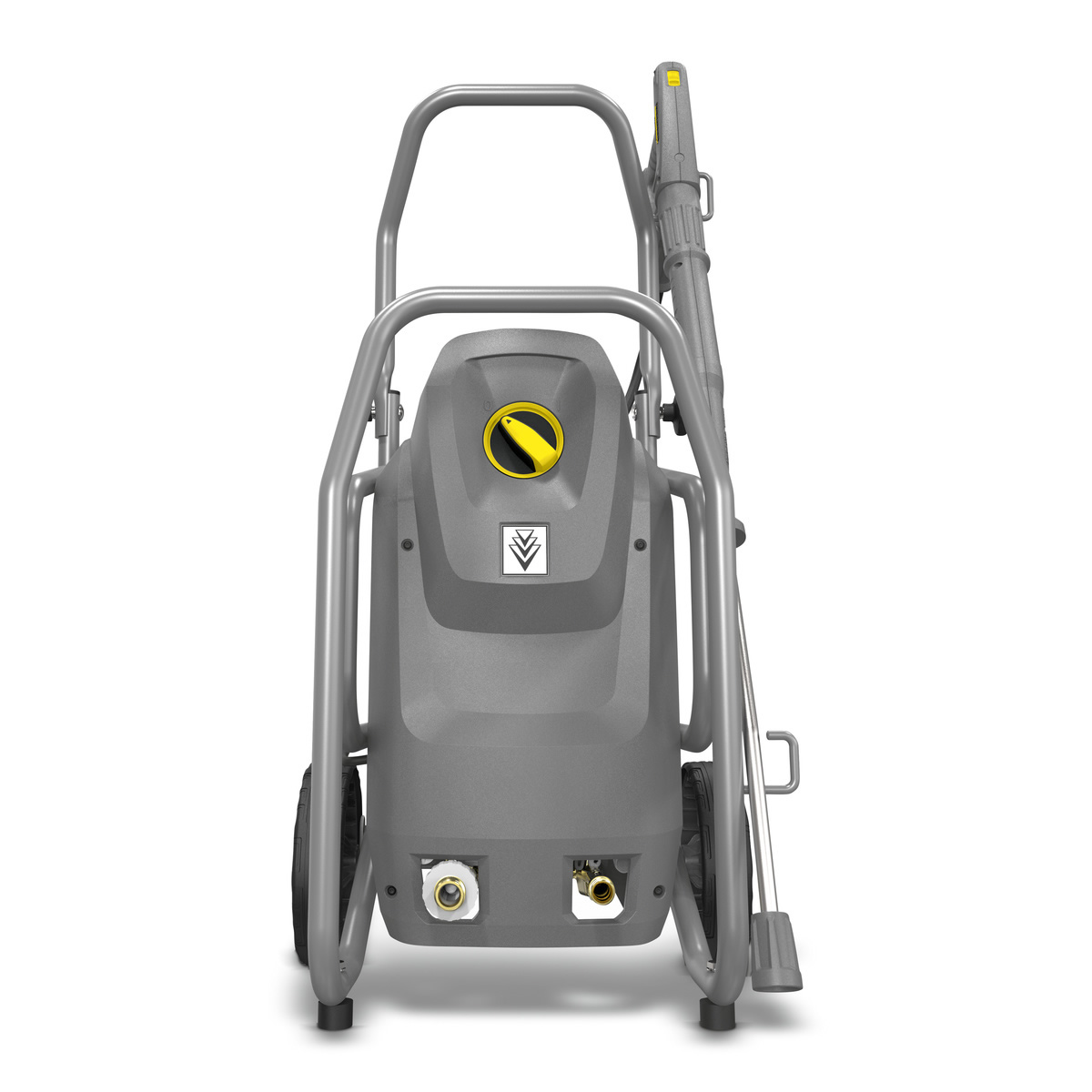

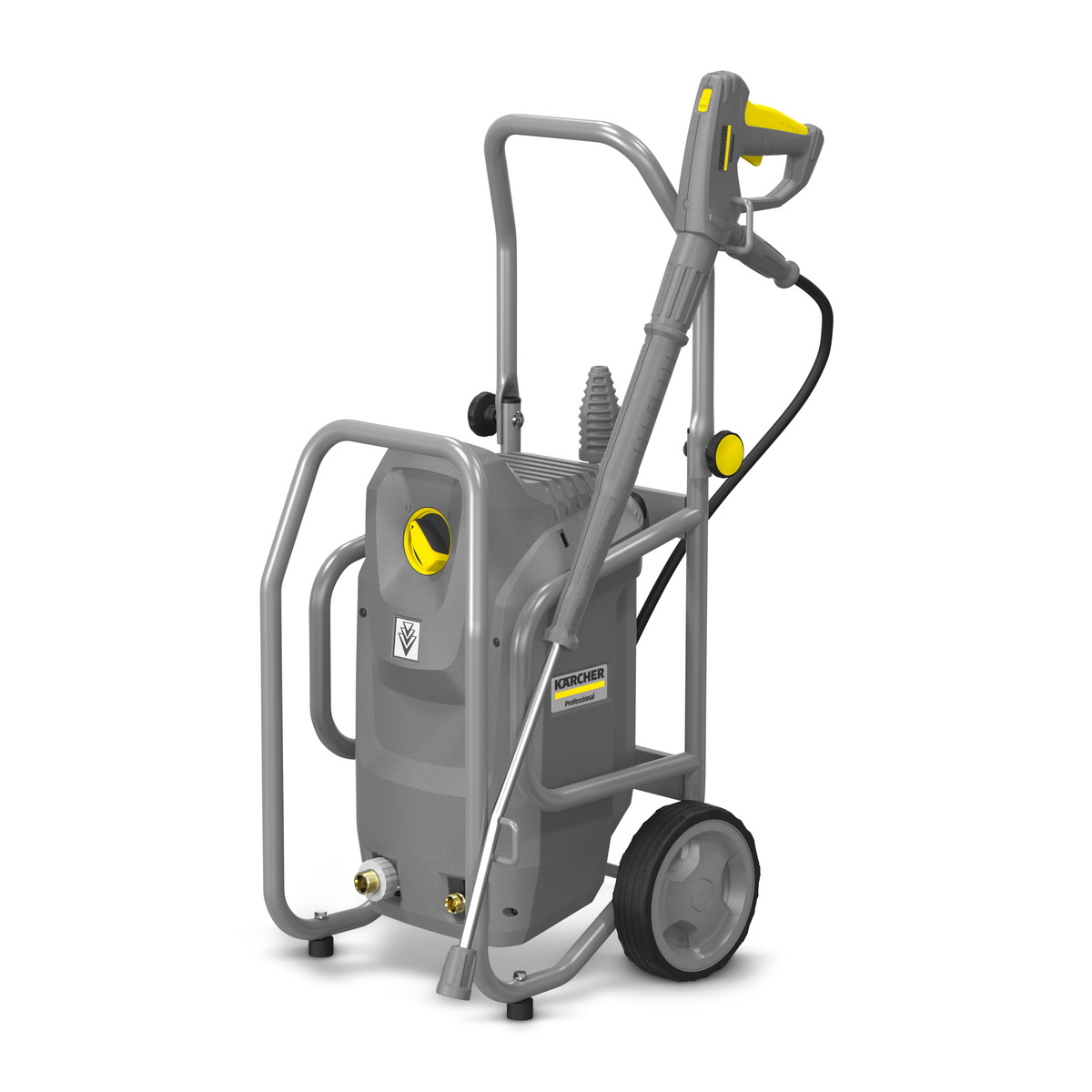

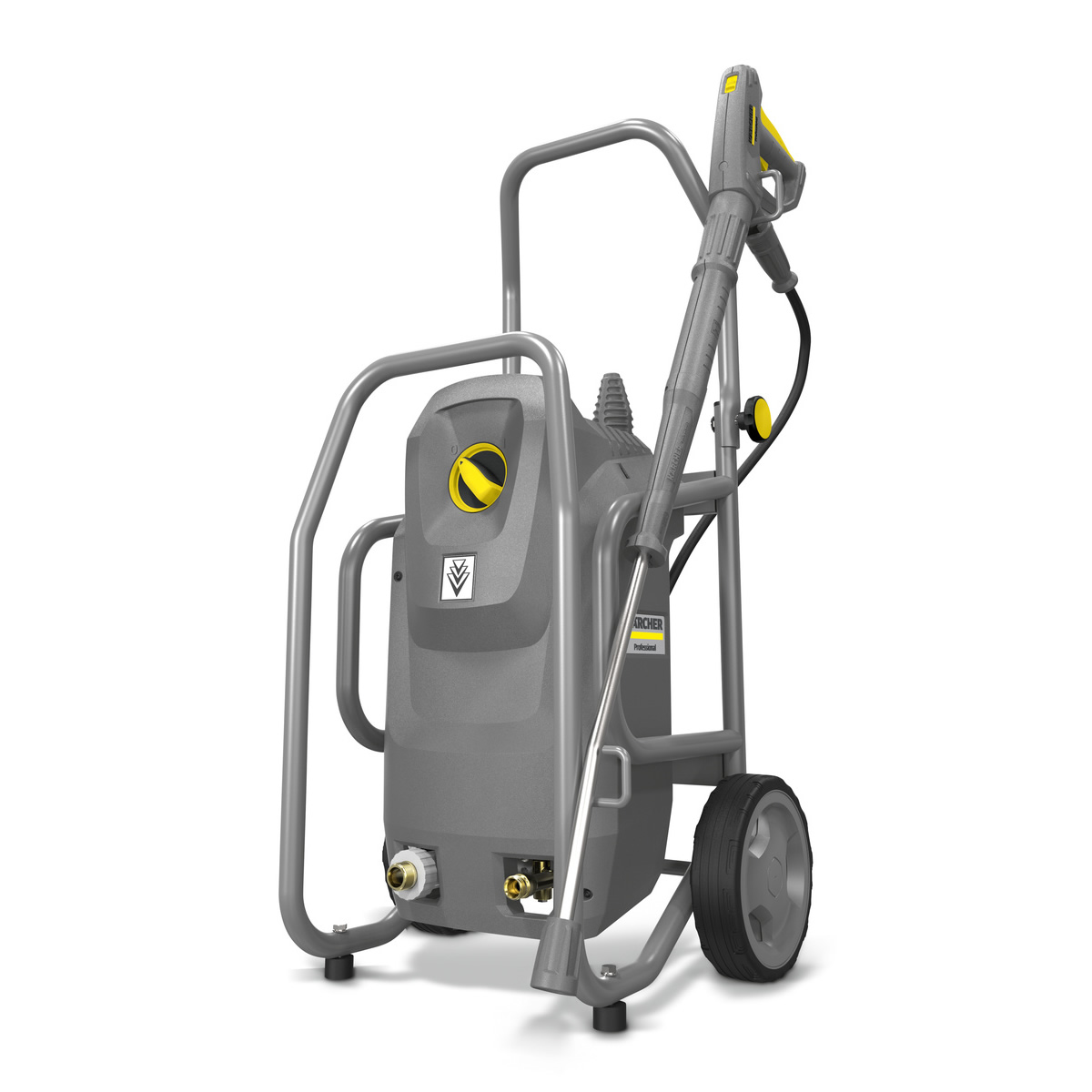

Karcher HD 7/12-4 M Cage

Contact us for a price
In stock

The EASY!Force high-pressure gun, along with the EASY!Lock quick-release couplings, on our HD 7/12-4 M Cage high-pressure cleaner ensure you can work without tiring and save on attachment and removal time. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. A powder-coated steel tubular frame reliably protects the machine from external damage under tough working conditions and during transportation. Internally, the automatic pressure relief feature protects the high-pressure components. Driven by a 4-pole, slow-running AC motor, the newly developed 3-piston axial pump with brass cylinder head enables an increase in the cleaning performance and energy efficiency of the HD 7/12-4 M Cage of around 20%. The high-pressure cleaner is also designed for vertical and horizontal operation, and boasts easy accessibility to the components relevant for maintenance.

Technical Data

  • Current type (Ph/V/Hz)1/240/50
  • Flow rate (l/h)700
  • Operating pressure (bar/MPa)120/12
  • Max. pressure (bar/MPa)180/18
  • Water feed temperature (°C)60
  • Power rating (kW)3,1
  • Power cable (m)5
  • Weight (with accessories) (kg)41,3
  • Dimensions (L x W x H) (mm)400 x 455 x 700

Standard Accessories

  • Pressure switch control
  • Three piston axial pump, with stainless steel pistons
  • Spray lance, 840 mm
  • Trigger gun, EASY!Force
  • Power nozzle
  • Quick coupling
  • Spray lance
  • Low-speed 4-pole motor
