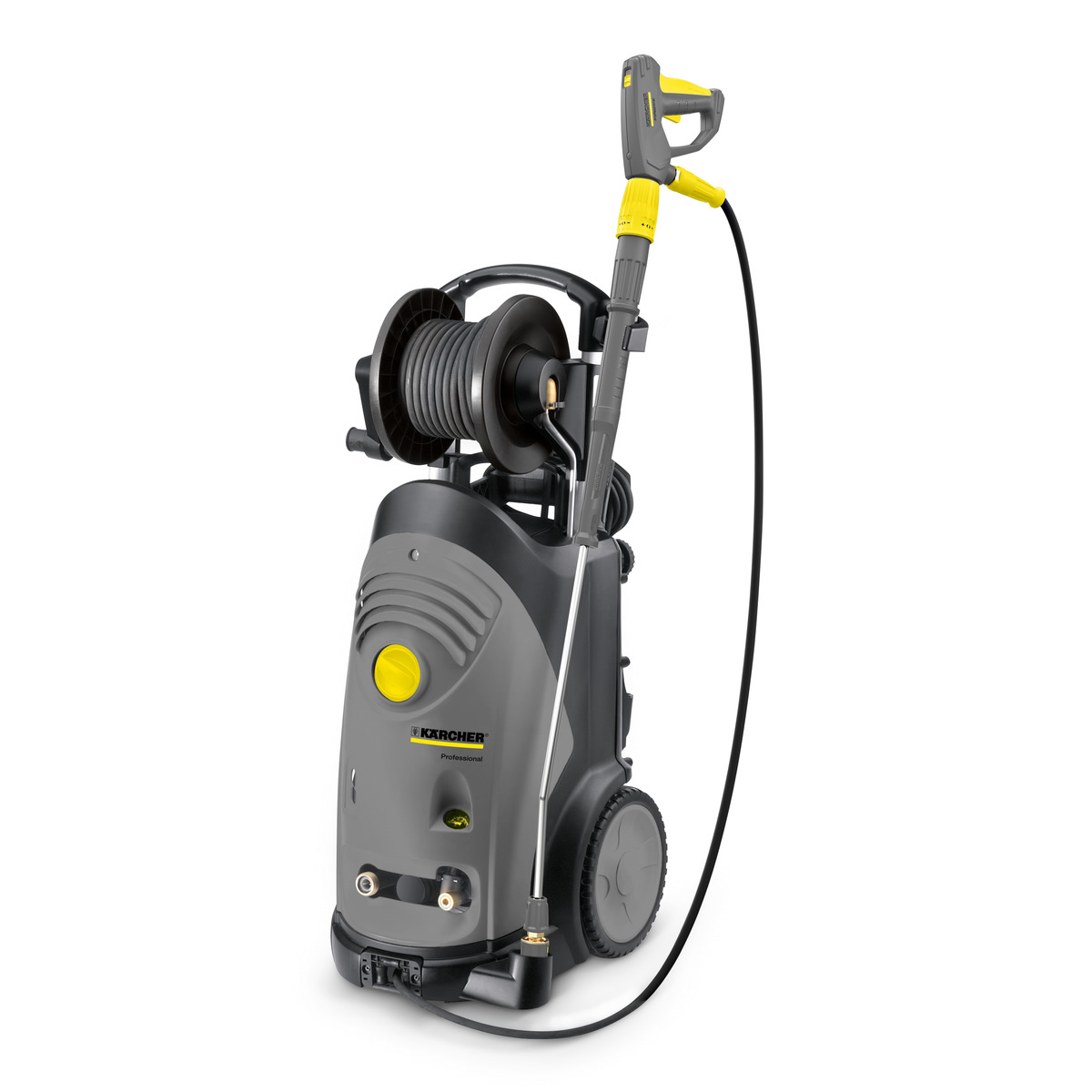

Karcher HD 9/20-4 MX Plus

Contact us for a price
In stock

The HD 9/20-4 MX Plus is a powerful, medium class pressure washer for heavy-duty cleaning tasks where 3-phase power supply is available. The machine features a 4-pole electric motor that runs at lower rpm than a 2-pole motor, providing more power and longevity. The machine offers water pressure of up to 200 bar and water flow rate of up to 900 litres per hour. The MX Plus model features a Dirt blaster nozzle, providing even greater cleaning performance for the most difficult cleaning tasks, and a 15m high pressure hose mounted to a built-in hose reel, for safe and convenient storage of the hose.

Technical Data

  • Current type (Ph/V/Hz)3/400/50
  • Flow rate (l/h)460-900
  • Operating pressure (bar/MPa)40-200/4-20
  • Max. pressure (bar/MPa)220/22
  • Water feed temperature (°C)60
  • Power rating (kW)7
  • Weight without accessories (kg)48
  • Weight (with accessories) (kg)57,6
  • Weight incl. packaging (kg)61.029
  • Dimensions (L x W x H) (mm)554 x 509 x 1000

Standard Accessories

  • Pressure switch control
  • Dirt Blaster spray lance
  • Three piston axial pump, with ceramic piston
  • Triple nozzle (0°/25°/40°), Manual
  • Spray lance, 1050 mm
  • Trigger gun, EASY!Force
  • Integral high-pressure hose reel
  • Servo Control
  • Spray lance
  • Low-speed 4-pole motor

Brochure (15249270.pdf, 1,886 Kb) [Download]
