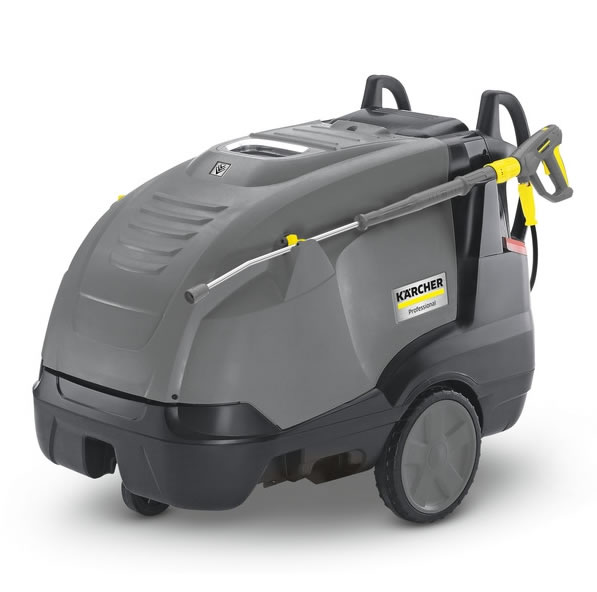

Karcher HDS 10/20-4M

£2,950.00
(£3,540.00 inc VAT)
1.071-900.0
In stock
+

The hot water pressure washers of the new middle- and super-class convince with their 6 main features. 1. Environmental protection Greater efficiency with the new ECO mode, service switch for controlling water hardness, turbo fan, precision detergent metering, optimized burner technology and a high-efficiency pump. 2. User friendliness This is ensured by a central, clearly arranged control panel designed for intuitive operation, a spray lance holder, LED display, an integral, low-friction hose reel for 20 metres hose that swivels through 180°, and much more. 3. Cleaning performance Highly efficient cleaning is guaranteed by patented nozzle technology, ceramic pistons, turbo fan as well as increased pump efficiency. Accessories are optimized for specific applications and designed to exactly suit customer requirements. 4. Mobility The mobility concept features two casters, large rubber-tyred wheels, ergonomic handles, lifting points for handling with a forklift, lashing rings and a recessed tread for tilting the machine to guarantee maximum manoeuvrability. 5. Reliability Guaranteed by flue gas monitoring, a corrosion-proof, flexurally stiff, robust chassis, machine protector system, three-piston axial pump with ceramic pistons, heat resistant flue outlet, and much more. 6. Service friendliness Easy access to all components that require servicing and a service switch to call up operating data at any time for troubleshooting.


Technical Data

  • Current type (Ph/V/Hz)3/400/50
  • Flow rate (l/h)500-1000
  • Pressure (bar/MPa)30-200/3-20
  • Max. temperature (°C)80-155
  • Power rating (kW)7,8
  • Consumption fuel oil (kg/h)6,4
  • Fuel tank (l)25
  • Power cable (m)5
  • Weight without accessories (kg)163
  • Weight (with accessories) (kg)168
  • Weight incl. packaging (kg)180.033
  • Dimensions (L x W x H) (mm)1330 x 750 x 1060

Standard Accessories

  • Exhaust gas temperature limiter
  • Pressure switch control
  • Control panel with indicator lamps
  • Low fuel cut-out
  • Steam mode
  • Spray lance, 1050 mm
  • Trigger gun, EASY!Force Advanced
  • Integral fuel and detergent tank
  • Pole reversing plug (three-phase)
  • Power nozzle
  • SDS system
  • Electronic service control with LED display
  • Servo Control
  • Infinitely variable pressure and water flow control on the unit
  • Dry running protection
  • Scale inhibitor
  • Low-speed 4-pole motor
  • Two detergent tanks


Brochure (10719000_compressed.pdf, 887 Kb) [Download]
