Karcher KM 105/110 R Diesel + KSSB

Contact us for a price
In stock

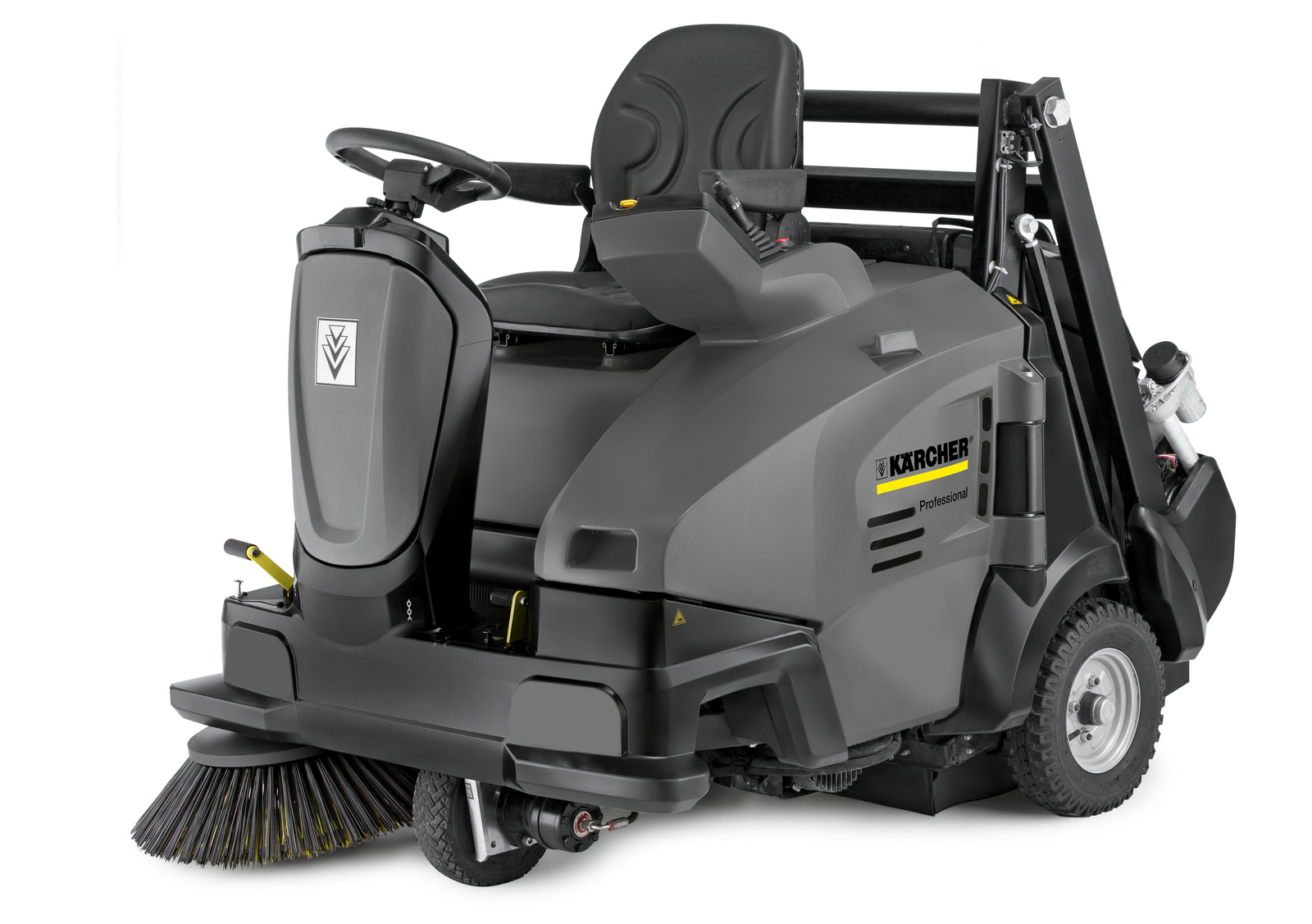

The new KM 105 range from Kärcher features a host of new innovations that rewrite the rule book for ride-on sweepers. New concepts like the main brush position, operator-specific control system, eco!efficiency mode, Power Plus battery boost system and centrally-positioned side brush combine to make the KM 105 the most sophisticated sweeper available, ultimately resulting in lower running costs, increased safety and greater productivity.

Technical Data

  • Drive Yanmar
  • Drive – power (kW)4.5
  • Theoretical area performance (m²/h)7350
  • Practical area performance (m²/h)5580
  • Max. area performance with 2 side brushes (m²/h)10150
  • Working width (mm)640
  • Working width with 1 side brush (mm)1050
  • Working width with 2 side brushes (mm)1450
  • Waste container (l)110
  • Hill climbing ability (%)16
  • Operating speed (km/h)7
  • Hydraulic container lift (m)1.55
  • Drive type Diesel
  • Water consumption
  • Weight without accessories (kg)484.06
  • Weight (with accessories) (kg)484.06
  • Weight incl. packaging (kg)485.06
  • Dimensions (L x W x H) (mm)1800 x 1250 x 1450

Standard Accessories

  • Vacuum
  • Outdoor applications
  • Automatic wear adjustment of the main sweeper roller
  • Automatic filter cleaning
  • Home Base fastening option
  • Operating hour meter
  • Traction drive, hydraulic
  • Travel drive, reverse
  • Travel drive - forward
  • Shared service concept
  • Bulk waste flap
  • Main sweeper roller on rear axle
  • Individual user languages/user rights
  • Kärcher Intelligent Key
  • Sweep function (can be switched off)
  • Sweeping crescent side brush
  • Pneumatic wheels
  • Multi-functional display
  • Power Plus system
  • Side brushes
  • Start / Stop system
  • Tact filter cleaning
  • Teach system
  • Overthrow sweeping principle

Brochure (03002020.pdf, 994 Kb) [Download]
