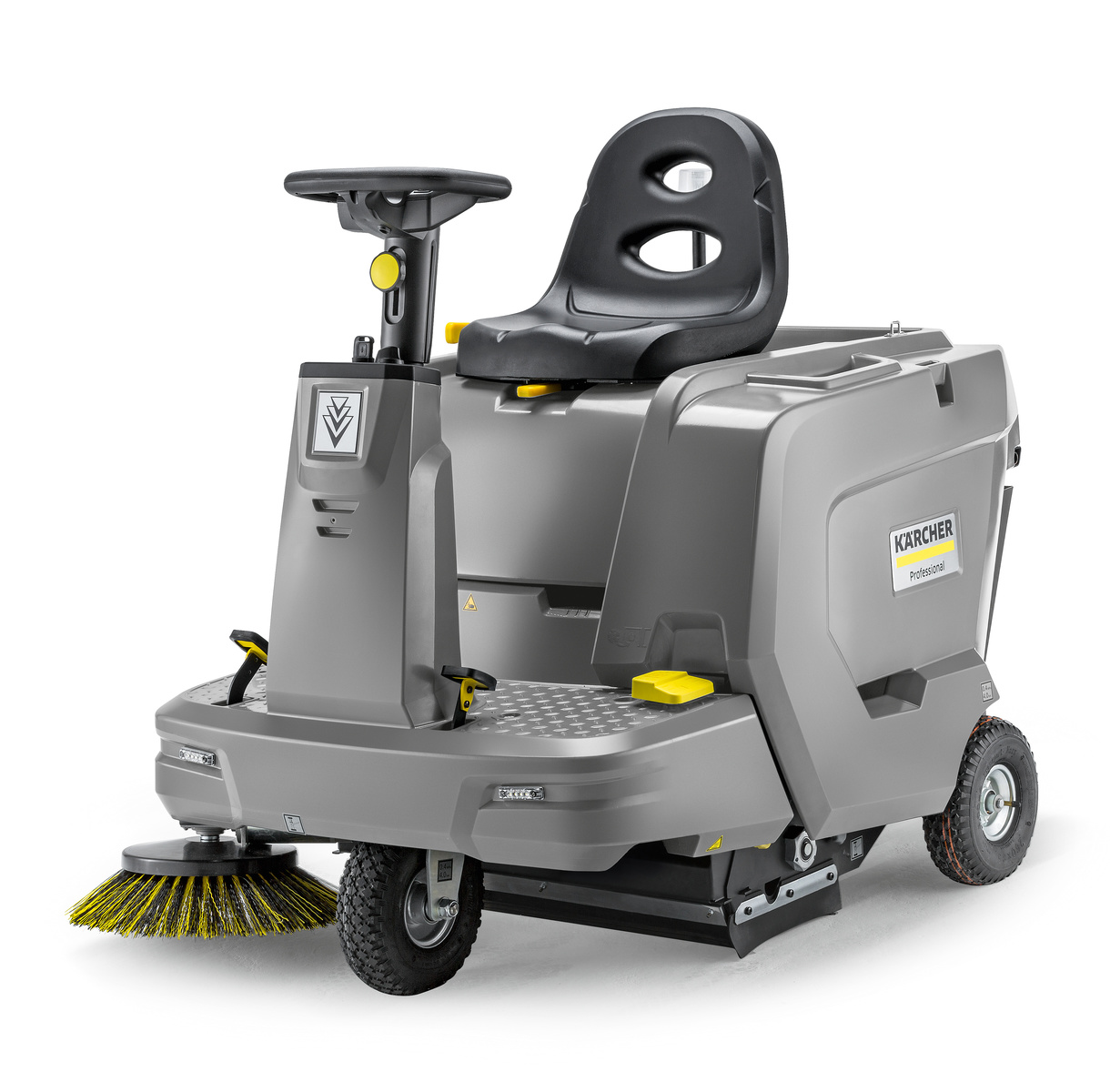

Karcher KM 85/50 R Battery

Contact us for a price
In stock

The extremely compact design of this machine ensures a high level of manoeuvrability, which also enables it to be used in confined and congested areas. Furthermore, it features impressive area performance in inside and outside areas and is extremely easy to operate. Maintenance work, such as changing the main sweeper roller, can be carried out without tools. The floating roller never has to be readjusted, yet nevertheless removes dirt on uneven floors without leaving any residue. It is also possible to easily access the inside of the machine without tools through a wide-opening cover. The operator can conveniently clean the dust filter from their seat. Thanks to our integrated Home Base system, it is equally as convenient to carry additional cleaning utensils.

Technical Data

  • Drive DC motor
  • Drive – power (V / W)24 / 1000
  • Theoretical area performance (m²/h)5100
  • Practical area performance (m²/h)3570
  • Max. area performance with 2 side brushes (m²/h)6510
  • Working width (mm)615
  • Working width with 1 side brush (mm)850
  • Working width with 2 side brushes (mm)1085
  • Waste Container (l)50
  • Hill climbing ability (%)12
  • Operating speed (km/h)6
  • Container capacity (l)2 x 25
  • Battery voltage (V)24
  • Battery capacity (Ah)105
  • Max. load capacity (kg)90
  • Filter area (m²)2.3
  • Drive type BatteryBattery
  • Weight without accessories (kg)230
  • Weight (with accessories) (kg)230
  • Weight, ready to operate (kg)252
  • Weight incl. packaging (kg)232
  • Dimensions (L x W x H) (mm)1350 x 940 x 1170

Standard Accessories

  • Vacuum
  • Outdoor applications
  • Automatic wear adjustment of the main sweeper roller
  • Battery and charger included
  • State-of-charge indicator
  • Home Base fastening option
  • Operating hour meter
  • Adjustable side brush speed
  • Traction drive, electric
  • Travel drive, reverse
  • Travel drive - forward
  • Mobile container
  • Bulk waste flap
  • Floating main roller brush
  • Indoor applications
  • Sweep function (can be switched off)
  • Pneumatic wheels
  • Manual filter cleaning system
  • Mechanical filter shaker
  • Multi-functional display
  • Adjustable suction power
  • Side brushes
  • Side brush swings out automatically
  • Overthrow sweeping principle

Brochure (13511270.pdf, 1,131 Kb) [Download]
